DOT MATRIX P.I
|
Features
|
- DISPLAY UP TO 63 FLOOR.
- INPUT CODE SELECTABLE S/W ( GRAY, BINARY & L.P.F )
- PASSING CHIME FUNCTION.
- 1 YEAR GUARANTY WITH NEW ONE
|

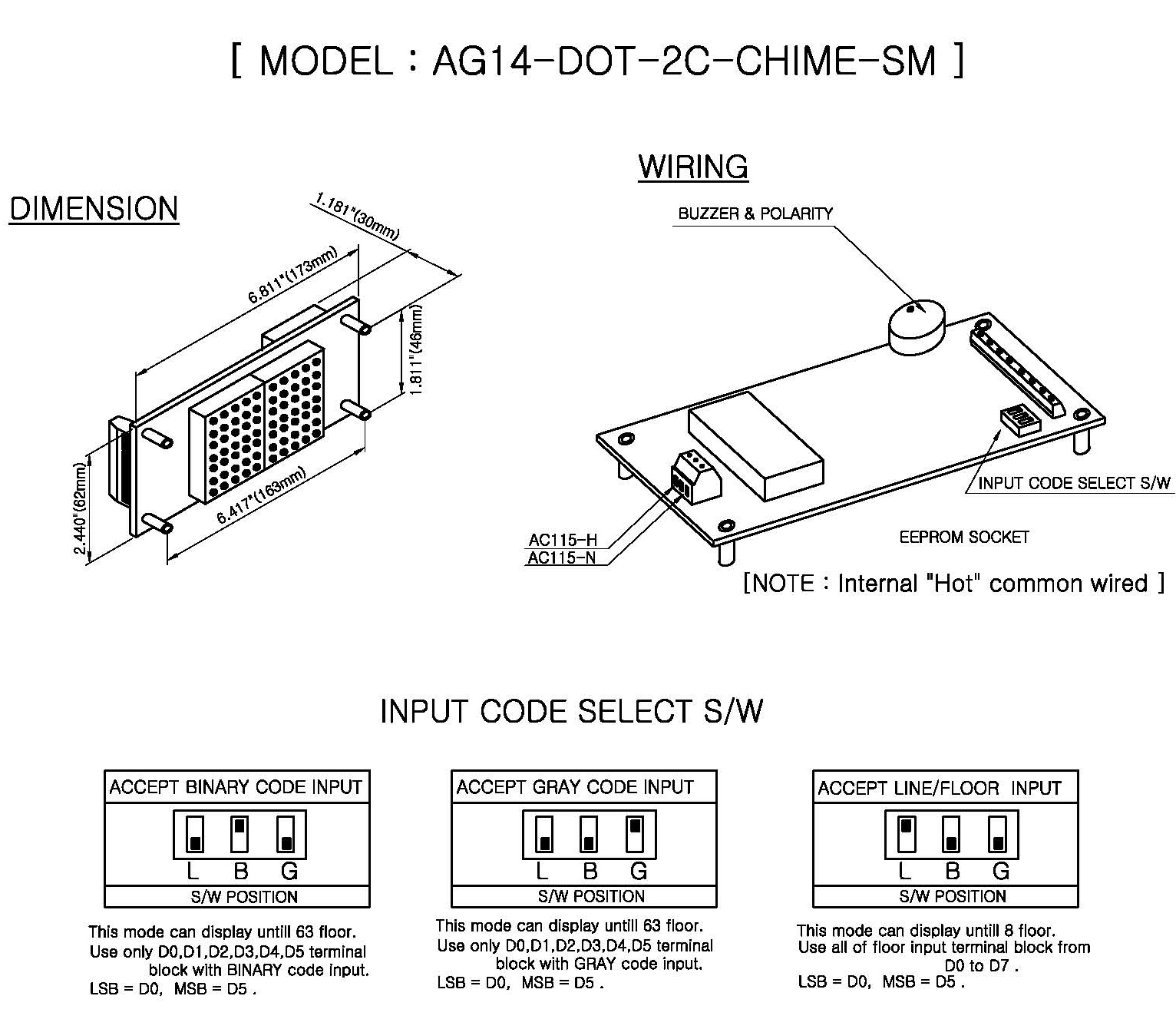

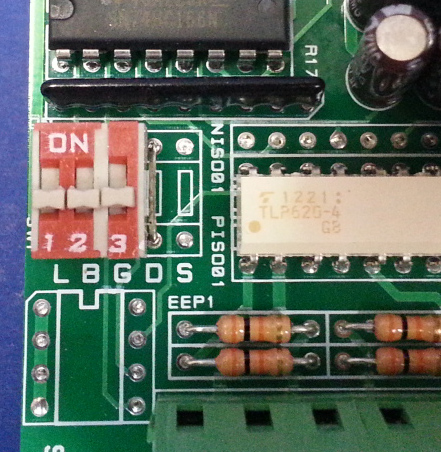

SELECTABLE DIP SWITCH for INPUT MODE
(LINE per FLOOR MODE, BINARY CODE or GRAY CODE)

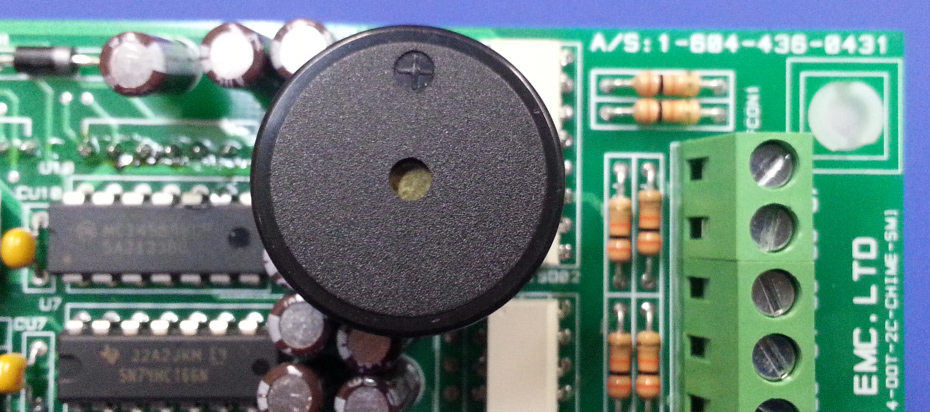

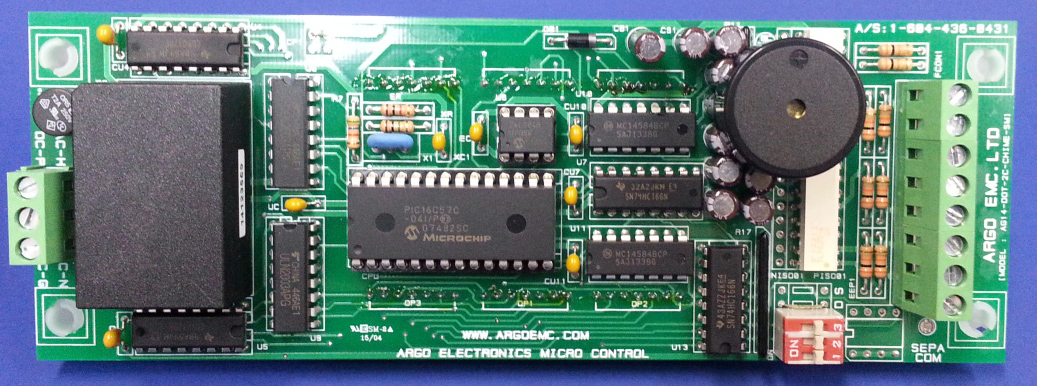

Floor passing chime on board

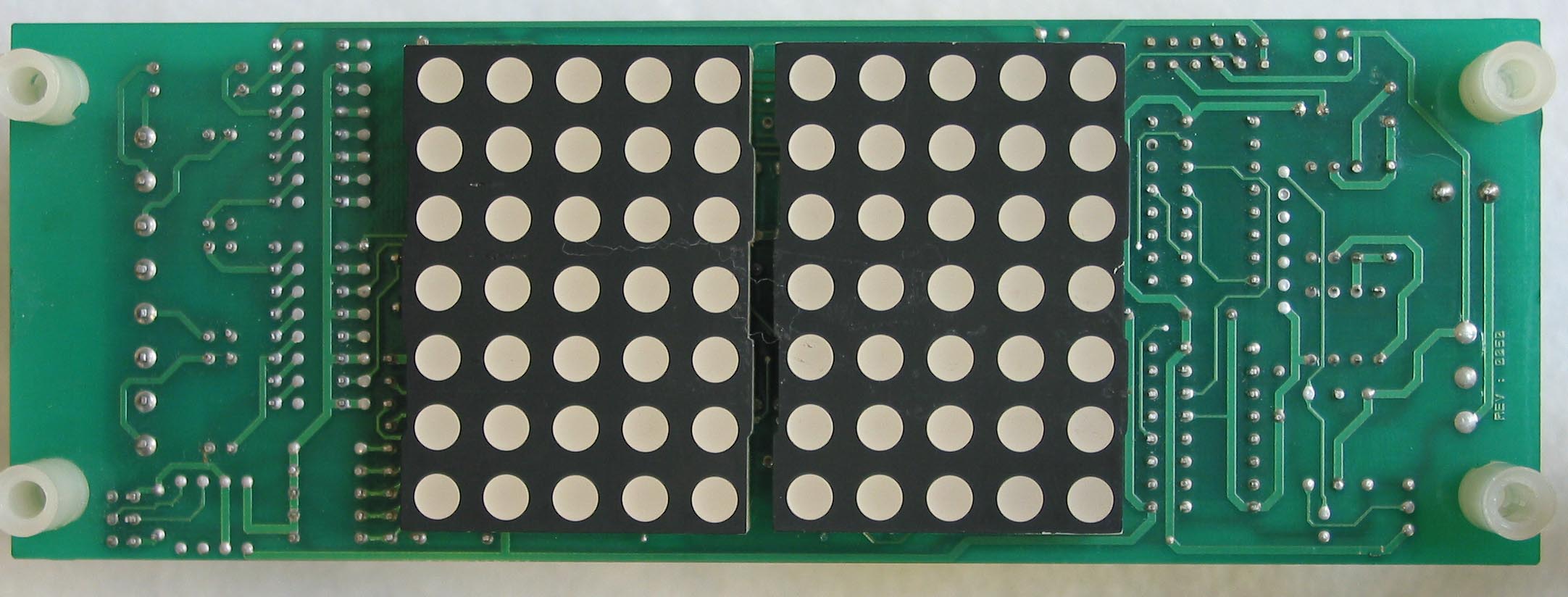

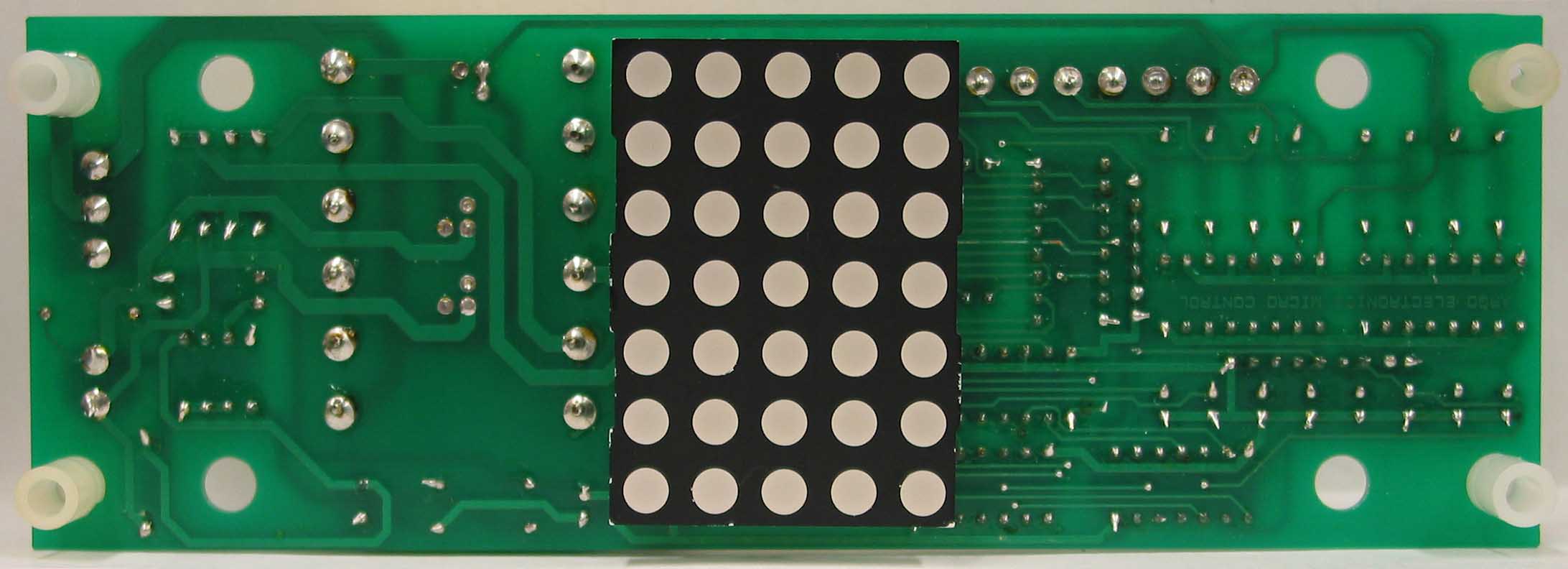

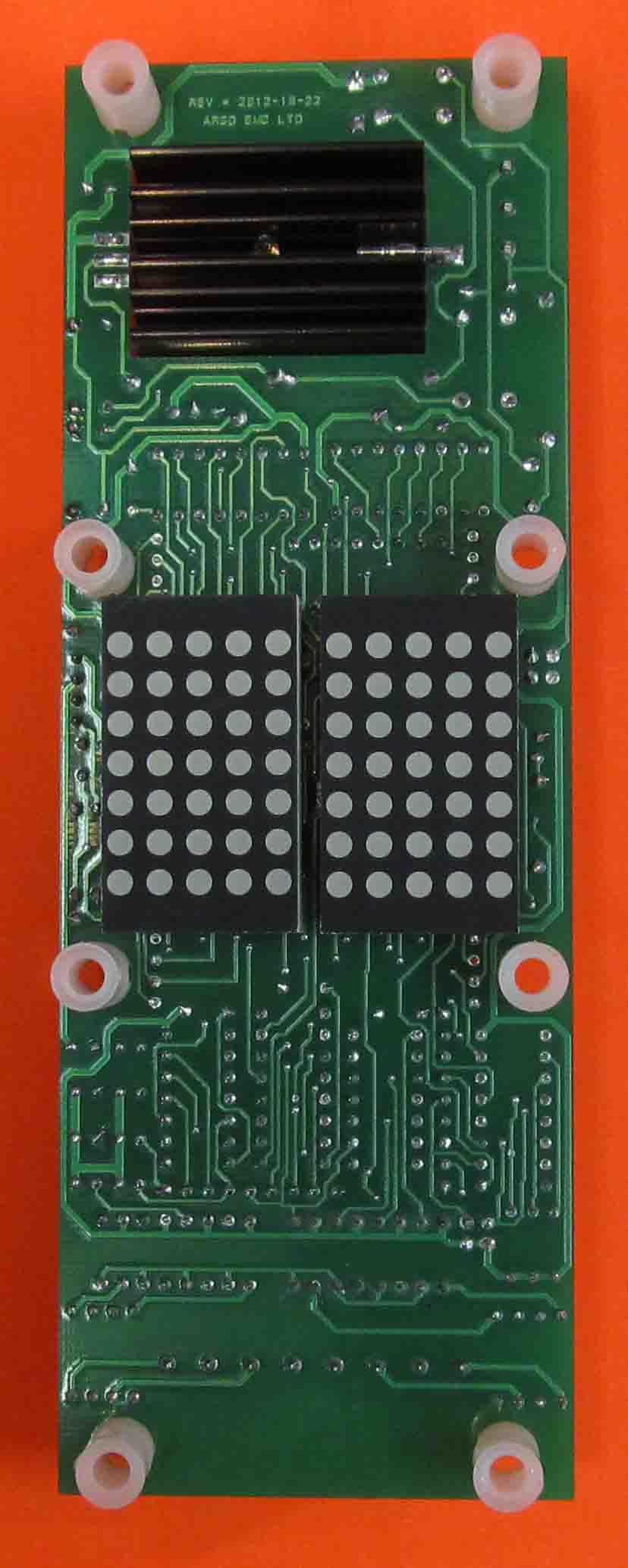

2" DOT MATRIX 2 CHARACTER P.I
|
|
|
|
|
P/N for Order : AG-Dot-PI-2C
|
2" DOT MATRIX 1 CHARACTER P.I
|
|
|
 |
|
P/N for Order : AG-Dot-PI-1C
|

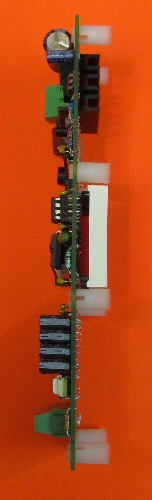

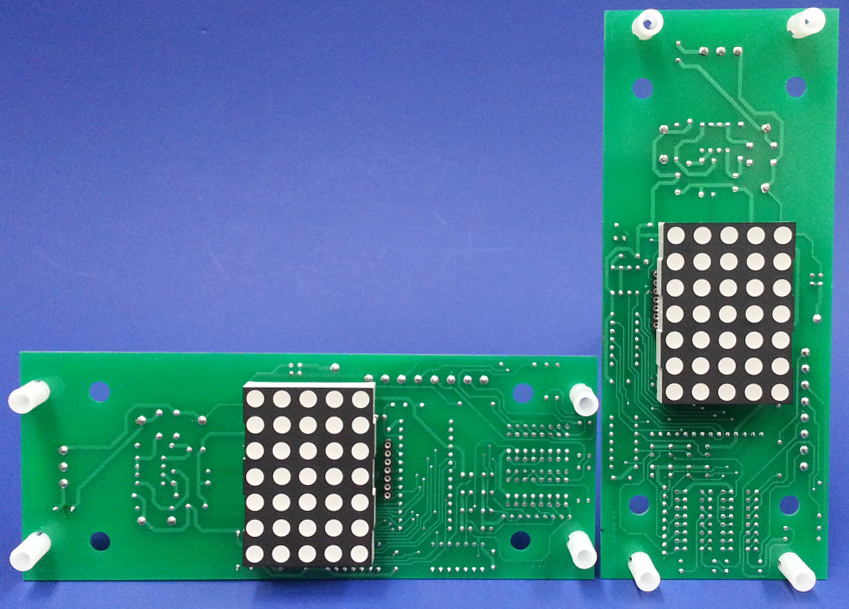

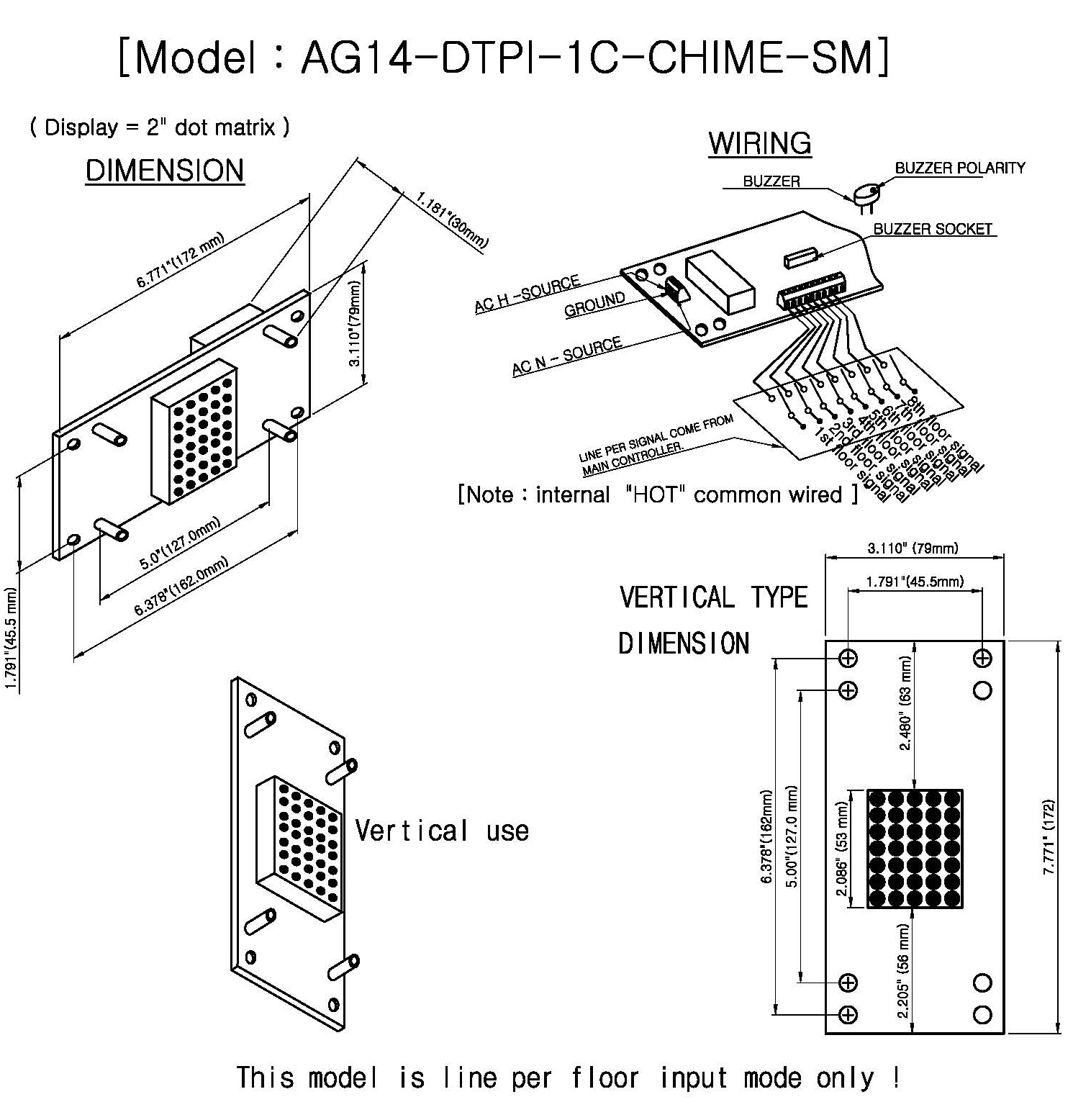

Same board but vertical or horizontal install

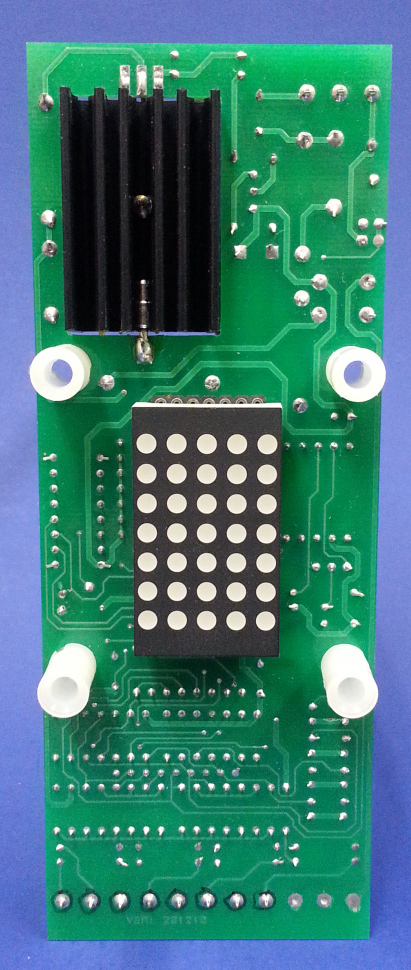

DOT MATRIX PI for HALL
(AC110 or DC24)
|
Features
|
- SUPPLY VOLTAGE IS AC 110 V or DC 24V
- TOTAL SYSTEM THICKNESS IS 1.1200" (29.00 mm).
- CAN DISPLAY UP TO 63 FLOOR.
- CAN SELECTABLE GRAY, BINARY OR LINE PER FLOOR INPUT CODE.
- PASSING CHIME FUNCTION.
|
|

|

|
|

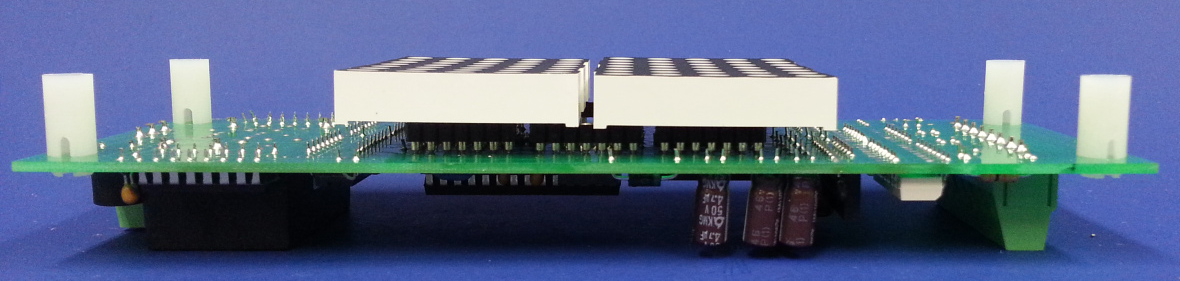

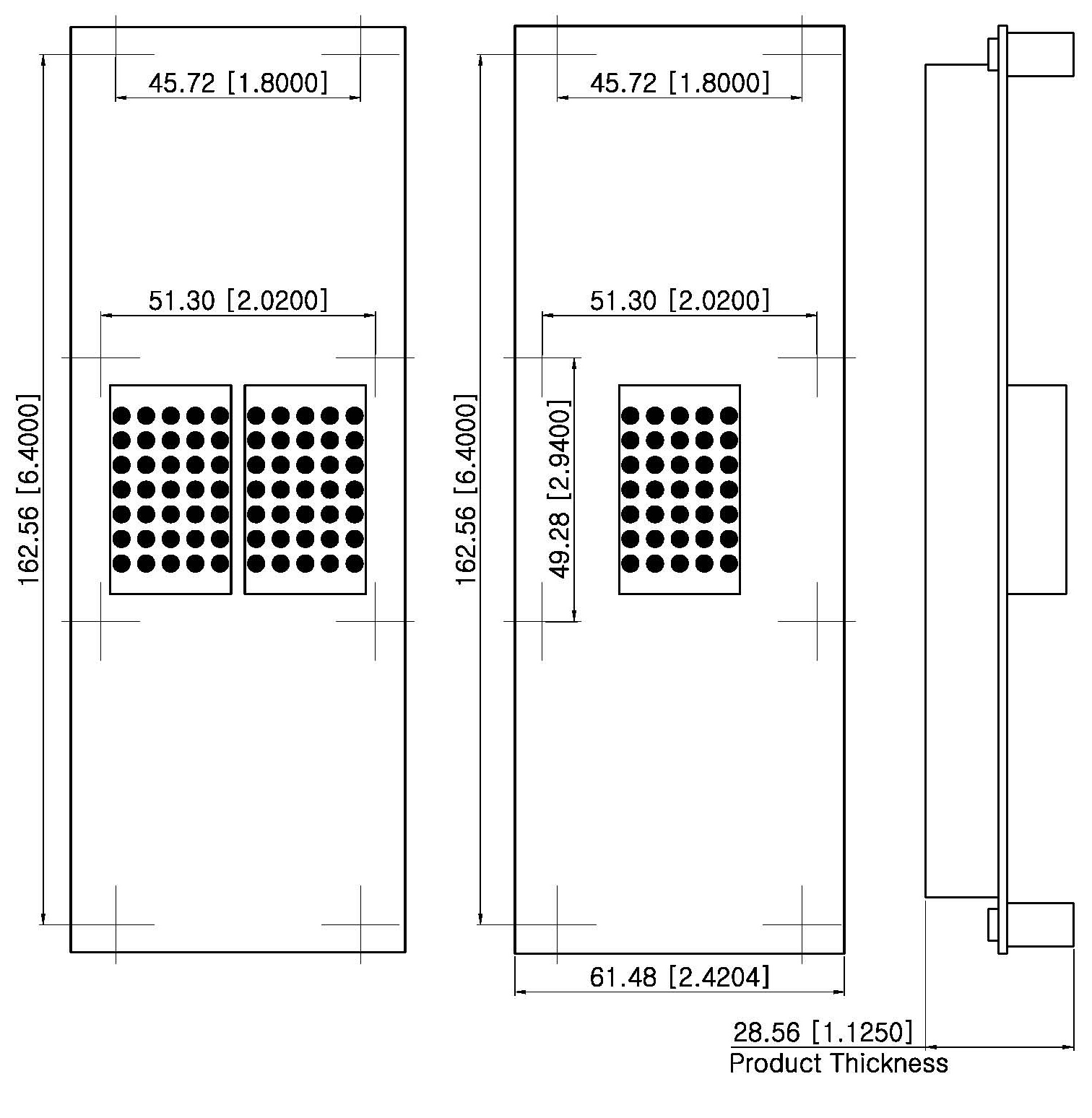

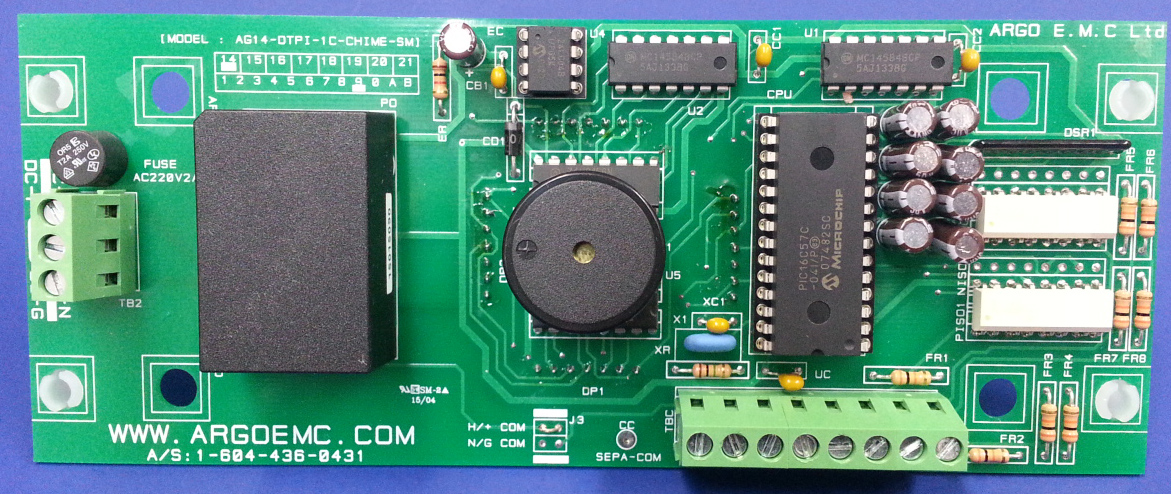

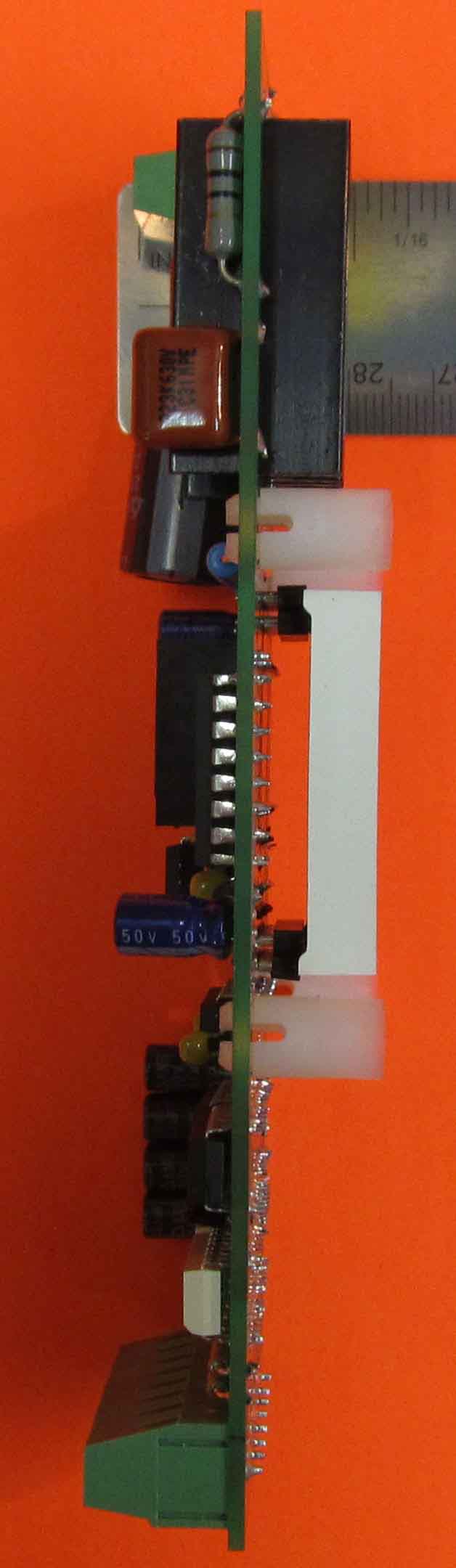

Double Character PCB size = L:174 x W:62 x H:29 mm
P/N for Order : AG-DOT-PI-2C-HS
|

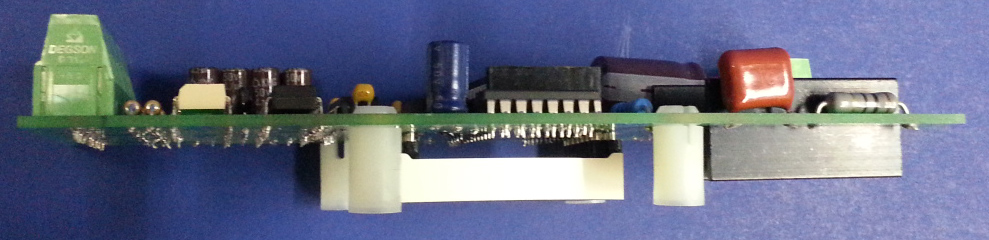

Single Character PCB size = L:174 x W:62 x H:29 mm
P/N for Order : AG-DOT-PI-1C-HS
|
|

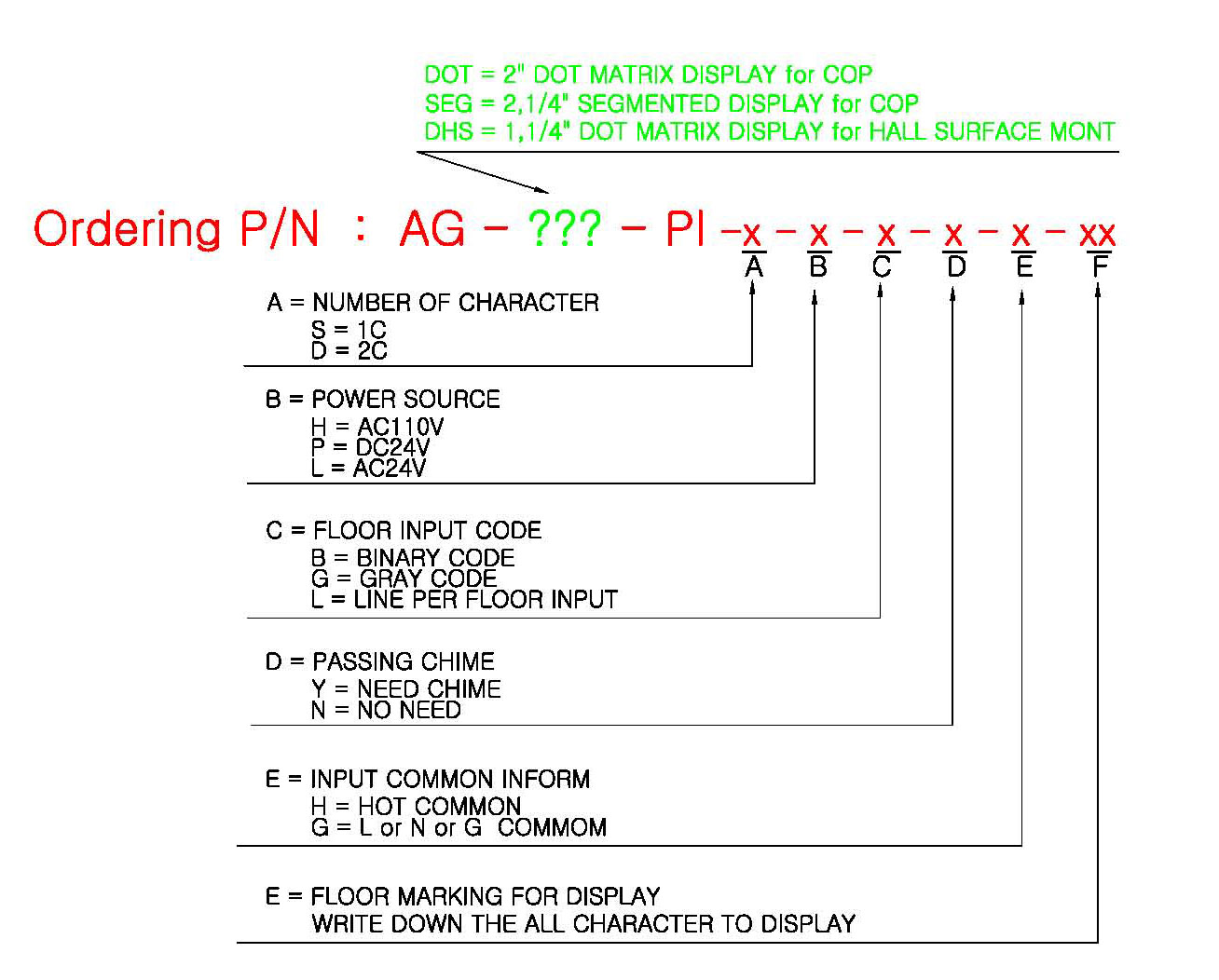

ORDERRING FORM
|
|
